Dasharo Openness Score
This page contains the Dasharo Openness Score for Dasharo releases compatible with MSI PRO Z790-P boards. The content of the page is generated with Dasharo Openness Score utility.
v0.9.0 heads
Openness Score for msi_ms7e06_v0.9.0_ddr5_heads.rom
Open-source code percentage: 61.4% Closed-source code percentage: 38.6%
- Image size: 33554432 (0x2000000)
- Number of regions: 6
- Number of CBFSes: 1
- Total open-source code size: 9099383 (0x8ad877)
- Total closed-source code size: 5716309 (0x573955)
- Total data size: 105592 (0x19c78)
- Total empty size: 18440636 (0x11961bc)
Numbers given above already include the calculations from CBFS regions presented below
FMAP regions
| FMAP region | Offset | Size | Category |
|---|---|---|---|
| SI_ME | 0x1000 | 0x3d8000 | closed-source |
| SI_DESC | 0x0 | 0x1000 | data |
| RW_MRC_CACHE | 0x400000 | 0x10000 | data |
| FMAP | 0x418000 | 0x200 | data |
CBFS COREBOOT
- CBFS size: 29261312
- Number of files: 25
- Open-source files size: 9099383 (0x8ad877)
- Closed-source files size: 1685845 (0x19b955)
- Data size: 35448 (0x8a78)
- Empty size: 18440636 (0x11961bc)
Numbers given above are already normalized (i.e. they already include size of metadata and possible closed-source LAN drivers included in the payload which are not visible in the table below)
| CBFS filename | CBFS filetype | Size | Compression | Category |
|---|---|---|---|---|
| fallback/payload | simple elf | 8782653 | none | open-source |
| fallback/romstage | stage | 95448 | none | open-source |
| fallback/ramstage | stage | 141286 | LZMA | open-source |
| fallback/dsdt.aml | raw | 11268 | none | open-source |
| fallback/postcar | stage | 31288 | none | open-source |
| bootblock | bootblock | 37440 | none | open-source |
| fspm.bin | fsp | 786432 | none | closed-source |
| fsps.bin | fsp | 283692 | LZ4 | closed-source |
| cpu_microcode_blob.bin | microcode | 431104 | none | closed-source |
| cbfs_master_header | cbfs header | 28 | none | data |
| config | raw | 4520 | LZMA | data |
| revision | raw | 867 | none | data |
| bootsplash.jpg | bootsplash | 26784 | none | data |
| vbt.bin | raw | 1258 | LZMA | data |
| build_info | raw | 141 | none | data |
| intel_fit | intel_fit | 80 | none | data |
| (empty) | null | 228 | none | empty |
| (empty) | null | 2317220 | none | empty |
| (empty) | null | 523940 | none | empty |
| (empty) | null | 7536548 | none | empty |
| (empty) | null | 142948 | none | empty |
| (empty) | null | 7695268 | none | empty |
| (empty) | null | 224484 | none | empty |
v0.9.1
Openness Score for msi_ms7e06_v0.9.1_ddr5.rom
Open-source code percentage: 43.4% Closed-source code percentage: 56.6%
- Image size: 33554432 (0x2000000)
- Number of regions: 37
- Number of CBFSes: 4
- Total open-source code size: 7057492 (0x6bb054)
- Total closed-source code size: 9218180 (0x8ca884)
- Total data size: 948366 (0xe788e)
- Total empty size: 16330394 (0xf92e9a)
Numbers given above already include the calculations from CBFS regions presented below
FMAP regions
| FMAP region | Offset | Size | Category |
|---|---|---|---|
| SI_ME | 0x1000 | 0x3ff000 | closed-source |
| SI_DESC | 0x0 | 0x1000 | data |
| SMMSTORE | 0x1000000 | 0x40000 | data |
| RECOVERY_MRC_CACHE | 0x10a0000 | 0x20000 | data |
| RW_MRC_CACHE | 0x10c0000 | 0x20000 | data |
| RW_ELOG | 0x10e0000 | 0x4000 | data |
| SHARED_DATA | 0x10e4000 | 0x2000 | data |
| VBLOCK_DEV | 0x10e6000 | 0x2000 | data |
| RW_VPD | 0x10e8000 | 0x2000 | data |
| RW_NVRAM | 0x10ea000 | 0x6000 | data |
| CONSOLE | 0x10f0000 | 0x20000 | data |
| HSPHY_FW | 0x1110000 | 0x8000 | data |
| VBLOCK_A | 0x1318000 | 0x10000 | data |
| RW_FWID_A | 0x17bff00 | 0x100 | data |
| VBLOCK_B | 0x17e0000 | 0x10000 | data |
| RW_FWID_B | 0x1bfff00 | 0x100 | data |
| RO_VPD | 0x1c00000 | 0x4000 | data |
| FMAP | 0x1c04000 | 0x800 | data |
| RO_FRID | 0x1c04800 | 0x100 | data |
| RO_FRID_PAD | 0x1c04900 | 0x700 | data |
| GBB | 0x1c05000 | 0x3000 | data |
| UNUSED | 0x400000 | 0xc00000 | empty |
CBFS BOOTSPLASH
- CBFS size: 2097152
- Number of files: 1
- Open-source files size: 0 (0x0)
- Closed-source files size: 0 (0x0)
- Data size: 28 (0x1c)
- Empty size: 2097124 (0x1fffe4)
Numbers given above are already normalized (i.e. they already include size of metadata and possible closed-source LAN drivers included in the payload which are not visible in the table below)
| CBFS filename | CBFS filetype | Size | Compression | Category |
|---|---|---|---|---|
| (empty) | null | 2097124 | none | empty |
CBFS FW_MAIN_A
- CBFS size: 4816640
- Number of files: 13
- Open-source files size: 2322780 (0x23715c)
- Closed-source files size: 1501228 (0x16e82c)
- Data size: 8609 (0x21a1)
- Empty size: 984023 (0xf03d7)
Numbers given above are already normalized (i.e. they already include size of metadata and possible closed-source LAN drivers included in the payload which are not visible in the table below)
| CBFS filename | CBFS filetype | Size | Compression | Category |
|---|---|---|---|---|
| fallback/romstage | stage | 103440 | none | open-source |
| fallback/ramstage | stage | 150907 | LZMA | open-source |
| fallback/dsdt.aml | raw | 11264 | none | open-source |
| fallback/postcar | stage | 69188 | none | open-source |
| fallback/payload | simple elf | 1987981 | none | open-source |
| cpu_microcode_blob.bin | microcode | 431104 | none | closed-source |
| fspm.bin | fsp | 786432 | none | closed-source |
| fsps.bin | fsp | 283692 | LZ4 | closed-source |
| config | raw | 5379 | LZMA | data |
| revision | raw | 850 | none | data |
| build_info | raw | 138 | none | data |
| vbt.bin | raw | 1258 | LZMA | data |
| (empty) | null | 740 | none | empty |
CBFS FW_MAIN_B
- CBFS size: 4259584
- Number of files: 13
- Open-source files size: 2322780 (0x23715c)
- Closed-source files size: 1501228 (0x16e82c)
- Data size: 8609 (0x21a1)
- Empty size: 426967 (0x683d7)
Numbers given above are already normalized (i.e. they already include size of metadata and possible closed-source LAN drivers included in the payload which are not visible in the table below)
| CBFS filename | CBFS filetype | Size | Compression | Category |
|---|---|---|---|---|
| fallback/romstage | stage | 103440 | none | open-source |
| fallback/ramstage | stage | 150907 | LZMA | open-source |
| fallback/dsdt.aml | raw | 11264 | none | open-source |
| fallback/postcar | stage | 69188 | none | open-source |
| fallback/payload | simple elf | 1987981 | none | open-source |
| cpu_microcode_blob.bin | microcode | 431104 | none | closed-source |
| fspm.bin | fsp | 786432 | none | closed-source |
| fsps.bin | fsp | 283692 | LZ4 | closed-source |
| config | raw | 5379 | LZMA | data |
| revision | raw | 850 | none | data |
| build_info | raw | 138 | none | data |
| vbt.bin | raw | 1258 | LZMA | data |
| (empty) | null | 740 | none | empty |
CBFS COREBOOT
- CBFS size: 4161536
- Number of files: 17
- Open-source files size: 2411932 (0x24cd9c)
- Closed-source files size: 1501228 (0x16e82c)
- Data size: 9008 (0x2330)
- Empty size: 239368 (0x3a708)
Numbers given above are already normalized (i.e. they already include size of metadata and possible closed-source LAN drivers included in the payload which are not visible in the table below)
| CBFS filename | CBFS filetype | Size | Compression | Category |
|---|---|---|---|---|
| fallback/romstage | stage | 103440 | none | open-source |
| fallback/ramstage | stage | 150907 | LZMA | open-source |
| fallback/dsdt.aml | raw | 11264 | none | open-source |
| fallback/postcar | stage | 69188 | none | open-source |
| fallback/payload | simple elf | 1987981 | none | open-source |
| bootblock | bootblock | 89152 | none | open-source |
| cpu_microcode_blob.bin | microcode | 431104 | none | closed-source |
| fspm.bin | fsp | 786432 | none | closed-source |
| fsps.bin | fsp | 283692 | LZ4 | closed-source |
| cbfs_master_header | cbfs header | 28 | none | data |
| intel_fit | intel_fit | 80 | none | data |
| config | raw | 5379 | LZMA | data |
| revision | raw | 850 | none | data |
| build_info | raw | 138 | none | data |
| vbt.bin | raw | 1258 | LZMA | data |
| (empty) | null | 484 | none | empty |
| (empty) | null | 238884 | none | empty |
v0.9.2
Openness Score for msi_ms7e06_v0.9.2_ddr5.rom
Open-source code percentage: 40.8% Closed-source code percentage: 59.2%
- Image size: 33554432 (0x2000000)
- Number of regions: 37
- Number of CBFSes: 4
- Total open-source code size: 6370867 (0x613633)
- Total closed-source code size: 9233747 (0x8ce553)
- Total data size: 948870 (0xe7a86)
- Total empty size: 17000948 (0x10369f4)
Numbers given above already include the calculations from CBFS regions presented below
FMAP regions
| FMAP region | Offset | Size | Category |
|---|---|---|---|
| SI_ME | 0x1000 | 0x3ff000 | closed-source |
| SI_DESC | 0x0 | 0x1000 | data |
| SMMSTORE | 0x1000000 | 0x40000 | data |
| RECOVERY_MRC_CACHE | 0x10a0000 | 0x20000 | data |
| RW_MRC_CACHE | 0x10c0000 | 0x20000 | data |
| RW_ELOG | 0x10e0000 | 0x4000 | data |
| SHARED_DATA | 0x10e4000 | 0x2000 | data |
| VBLOCK_DEV | 0x10e6000 | 0x2000 | data |
| RW_VPD | 0x10e8000 | 0x2000 | data |
| RW_NVRAM | 0x10ea000 | 0x6000 | data |
| CONSOLE | 0x10f0000 | 0x20000 | data |
| HSPHY_FW | 0x1110000 | 0x8000 | data |
| VBLOCK_A | 0x1318000 | 0x10000 | data |
| RW_FWID_A | 0x17bff00 | 0x100 | data |
| VBLOCK_B | 0x17e0000 | 0x10000 | data |
| RW_FWID_B | 0x1bfff00 | 0x100 | data |
| RO_VPD | 0x1c00000 | 0x4000 | data |
| FMAP | 0x1c04000 | 0x800 | data |
| RO_FRID | 0x1c04800 | 0x100 | data |
| RO_FRID_PAD | 0x1c04900 | 0x700 | data |
| GBB | 0x1c05000 | 0x3000 | data |
| UNUSED | 0x400000 | 0xc00000 | empty |
CBFS BOOTSPLASH
- CBFS size: 2097152
- Number of files: 1
- Open-source files size: 0 (0x0)
- Closed-source files size: 0 (0x0)
- Data size: 28 (0x1c)
- Empty size: 2097124 (0x1fffe4)
Numbers given above are already normalized (i.e. they already include size of metadata and possible closed-source LAN drivers included in the payload which are not visible in the table below)
| CBFS filename | CBFS filetype | Size | Compression | Category |
|---|---|---|---|---|
| (empty) | null | 2097124 | none | empty |
CBFS FW_MAIN_A
- CBFS size: 4816640
- Number of files: 13
- Open-source files size: 2091793 (0x1feb11)
- Closed-source files size: 1506417 (0x16fc71)
- Data size: 8762 (0x223a)
- Empty size: 1209668 (0x127544)
Numbers given above are already normalized (i.e. they already include size of metadata and possible closed-source LAN drivers included in the payload which are not visible in the table below)
| CBFS filename | CBFS filetype | Size | Compression | Category |
|---|---|---|---|---|
| fallback/payload | simple elf | 1773739 | none | open-source |
| fallback/romstage | stage | 110688 | none | open-source |
| fallback/ramstage | stage | 155027 | LZMA | open-source |
| fallback/dsdt.aml | raw | 11347 | none | open-source |
| fallback/postcar | stage | 40992 | none | open-source |
| cpu_microcode_blob.bin | microcode | 436224 | none | closed-source |
| fspm.bin | fsp | 786432 | none | closed-source |
| fsps.bin | fsp | 283761 | LZ4 | closed-source |
| config | raw | 5634 | LZMA | data |
| revision | raw | 850 | none | data |
| build_info | raw | 138 | none | data |
| vbt.bin | raw | 1258 | LZMA | data |
| (empty) | null | 100 | none | empty |
CBFS FW_MAIN_B
- CBFS size: 4259584
- Number of files: 13
- Open-source files size: 2091793 (0x1feb11)
- Closed-source files size: 1506417 (0x16fc71)
- Data size: 8762 (0x223a)
- Empty size: 652612 (0x9f544)
Numbers given above are already normalized (i.e. they already include size of metadata and possible closed-source LAN drivers included in the payload which are not visible in the table below)
| CBFS filename | CBFS filetype | Size | Compression | Category |
|---|---|---|---|---|
| fallback/payload | simple elf | 1773739 | none | open-source |
| fallback/romstage | stage | 110688 | none | open-source |
| fallback/ramstage | stage | 155027 | LZMA | open-source |
| fallback/dsdt.aml | raw | 11347 | none | open-source |
| fallback/postcar | stage | 40992 | none | open-source |
| cpu_microcode_blob.bin | microcode | 436224 | none | closed-source |
| fspm.bin | fsp | 786432 | none | closed-source |
| fsps.bin | fsp | 283761 | LZ4 | closed-source |
| config | raw | 5634 | LZMA | data |
| revision | raw | 850 | none | data |
| build_info | raw | 138 | none | data |
| vbt.bin | raw | 1258 | LZMA | data |
| (empty) | null | 100 | none | empty |

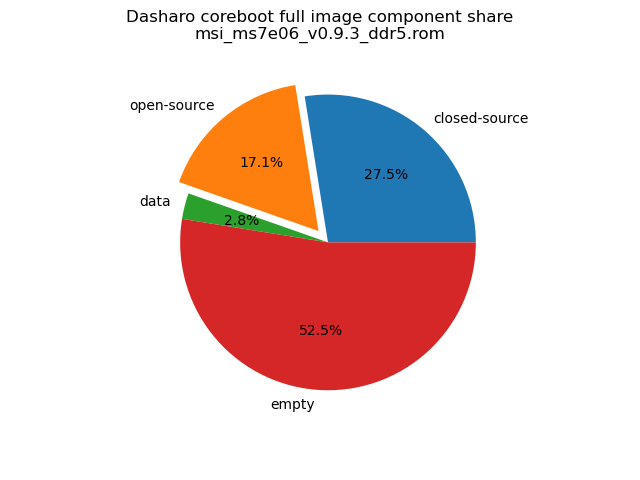

CBFS COREBOOT
- CBFS size: 4161536
- Number of files: 17

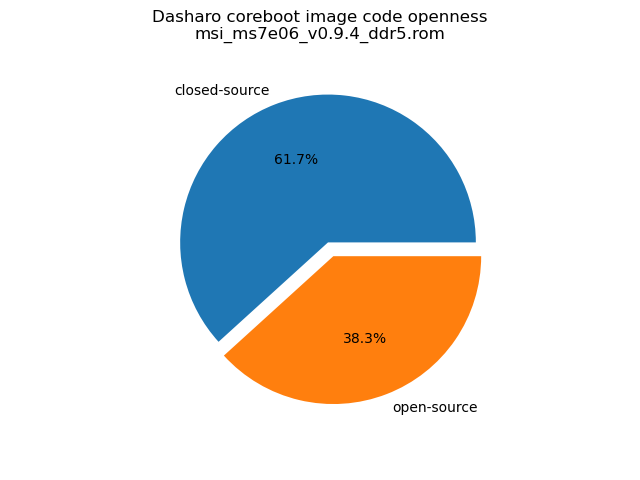

- Open-source files size: 2187281 (0x216011)
- Closed-source files size: 1506417 (0x16fc71)
- Data size: 9206 (0x23f6)
- Empty size: 458632 (0x6ff88)
Numbers given above are already normalized (i.e. they already include size of metadata and possible closed-source LAN drivers included in the payload which are not visible in the table below)
| CBFS filename | CBFS filetype | Size | Compression | Category |
|---|---|---|---|---|
| fallback/payload | simple elf | 1773739 | none | open-source |
| fallback/romstage | stage | 110688 | none | open-source |
| fallback/ramstage | stage | 155027 | LZMA | open-source |
| fallback/dsdt.aml | raw | 11347 | none | open-source |
| fallback/postcar | stage | 40992 | none | open-source |
| bootblock | bootblock | 95488 | none | open-source |
| cpu_microcode_blob.bin | microcode | 436224 | none | closed-source |
| fspm.bin | fsp | 786432 | none | closed-source |
| fsps.bin | fsp | 283761 | LZ4 | closed-source |
| cbfs_master_header | cbfs header | 32 | none | data |
| intel_fit | intel_fit | 80 | none | data |
| config | raw | 5634 | LZMA | data |
| revision | raw | 850 | none | data |
| build_info | raw | 138 | none | data |
| vbt.bin | raw | 1258 | LZMA | data |
| (empty) | null | 2596 | none | empty |
| (empty) | null | 456036 | none | empty |
