PCR measurements performed by Dasharo firmware

Introduction

As part of measured boot process firmware hashes (measures) various pieces of code or data and updates PCRs of a TPM device. This allows a user (typically, automatically) to attest integrity of the system by verifying PCR values after a boot or tying decryption of data to expected values.

Usually the firmware is not the only entity which updates PCRs and even if it is, the number of updates can be large, so it's important to know which values do get measured to which PCRs and under what conditions (e.g., some measurements are done in response to user actions).

TPM event log maintained throughout the boot process is meant to track this kind of information, but due to limitations of its format the log is rarely enough to understand all of the measurements. This document is meant to describe when Dasharo updates PCRs so users would know which PCRs to use and when to expect their values to be changed.

Firmware components are described separately because not all components might be present in a given firmware variant.

The truth about PCR usage

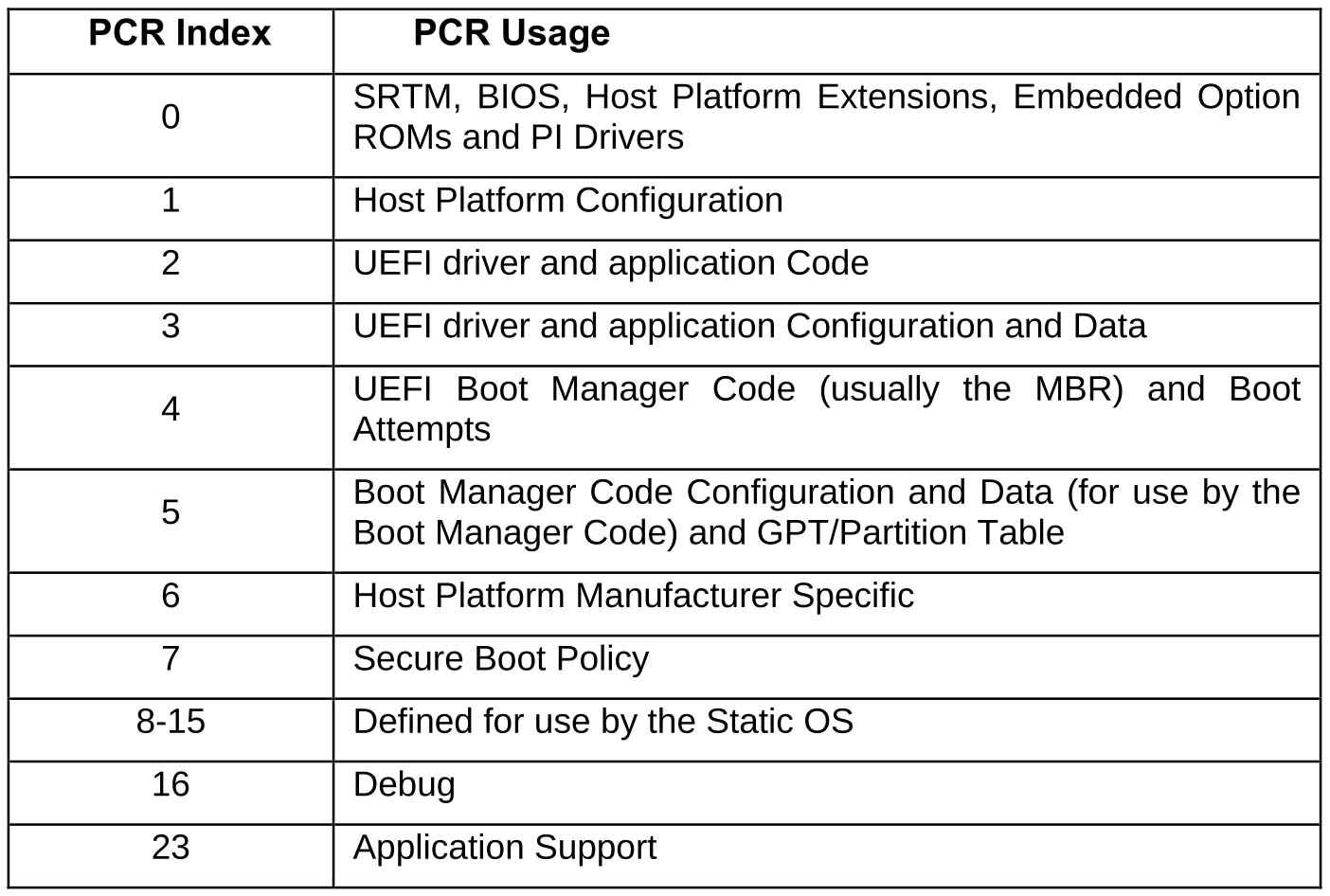

TPM 1.2 Specification (section 3.3.3) and TPM 2.0 Specification (section 3.3.4) provide information on which PCRs are expected to be used for what purposes. The problem is that instructions seemingly contradict themselves and even if when they don't, discerning which PCR is to be used for a particular code or data is far from an easy task. This results in a disconnect between what's prescribed by those specification and how things are in practice.

EDK is better at adhering to TCG specifications probably because of interactions between developers on both sides. The way coreboot updates PCRs originally came from Chromebooks and its authors had a different interpretation of PCR allocations (see). When EDK is used as a second-stage firmware after coreboot, you get a mix of both.

coreboot measurements

PCR banks

At the time of writing (July 2024) coreboot supports extending only a single bank of a PCR despite ability of TPM 2.0 to handle multiple banks. A PCR bank, which corresponds to a specific hash function, is fixed at build time:

TPM version	PCR Bank
1.2	SHA-1 only
2.0	SHA-256 only (default used by Dasharo, but there are others)

This has an implication for TPM 2.0 case when multiple PCR banks are active and used by EDK. This is handled by using dummy hash values (0100...) for missing digests (SHA-1) which do not correspond to actual PCR updates. Doing this breaks replaying of TPM log unless fake digests are skipped, but it allows to comply with TPM event log format.

PCR measurements

PCR	Event type	Condition	Description
PCR-2	EV_ACTION	Always	Stages, constant data, blobs, payload
PCR-3	EV_ACTION	If present	Runtime data

The measurements are done each time a particular part of firmware is read from ROM, which results in the same data being measured multiple times in some cases.

EDK measurements

PCR banks

EDK allows a user to select which TPM banks are active and aligns measurements with that. Practically this means usage of all available PCR banks by default.

Note that coreboot handles PCR banks differently, see above for more details and implications.

PCR measurements

The order of the rows reflects typical order of measurements in the event log but it's not fixed and depends on TPM version (different drivers do things differently), user actions (picked a boot option from a menu or not), failure to boot and other things.

ATM (at the moment) in the table means as of June 2024. Empty cells match contents of the last non-empty cell, so that it's easier to read sequences of measurements.

PCR	Event type	Condition	Description
PCR-0	EV_S_CRTM_VERSION	Always	Firmware version (empty string ATM)
PCR-0	EV_EFI_PLATFORM_FIRMWARE_BLOB	Always	UEFI firmware volume base+size (TPM2 could use v2 of the event, but doesn't ATM)
PCR-7	EV_EFI_VARIABLE_DRIVER_CONFIG	Always for TPM 2.0	61dfe48b-ca93-d211-aa0d-00e098032b8c:SecureBoot variable
		These variables set	61dfe48b-ca93-d211-aa0d-00e098032b8c:PK variable
			61dfe48b-ca93-d211-aa0d-00e098032b8c:KEK variable
			cbb219d7-3a3d-9645-a3bc-dad00e67656f:db variable
			cbb219d7-3a3d-9645-a3bc-dad00e67656f:dbx variable
PCR-0	EV_POST_CODE	TPM present	ACPI tables which are about to be published but not yet finalized for publishing
PCR-4	EV_EFI_BOOT_SERVICES_APPLICATION	Boot menu/Setup	Hash of an EFI application implementing UI
PCR-1	0x00DA0000	First boot try	Dasharo-specific EFI variables (NUL-terminated ASCII name followed by variable's value)
PCR-1	EV_EFI_VARIABLE_BOOT	First boot try	61dfe48b-ca93-d211-aa0d-00e098032b8c:BootOrder variable
			61dfe48b-ca93-d211-aa0d-00e098032b8c:Boot0000... variables
PCR-4	EV_EFI_ACTION	Any boot try	"Calling EFI Application from Boot Option"
PCR-0..7	EV_SEPARATOR	Always	Separator
PCR-1	EV_EFI_HANDOFF_TABLES	First boot try	SMBIOS base+size (could use v2 of the event, but doesn't ATM)
PCR-4	EV_EFI_BOOT_SERVICES_APPLICATION	Any boot try	Hash of an EFI application (bootloader, UEFI shell, etc.)
PCR-7	EV_EFI_VARIABLE_AUTHORITY	Unknown	Measurements done by shim as an extension of SecureBoot, listed here to show where they appear
PCR-8..9	EV_IPL	Unknown	Measurements done by a bootloader (GRUB, shim, etc.), listed here to show where they appear
PCR-5	EV_EFI_ACTION	OS is booting	"Exit Boot Services Invocation"
			"Exit Boot Services Returned with Success"

Other sources of measurements

Applications started by firmware to boot the system continue to measure code and data they use and also show up in the event log. You can find more details in the documentation of respective tools (e.g., for GRUB2 or shim).

Caveats

First Boot

First boot is somewhat special due to firmware initializing its state. This includes SecureBoot-related variables which generate EV_EFI_VARIABLE_DRIVER_CONFIG events. SecureBoot is considered to be on at the start, but then it's switched to its default off state. As a result, event log on first and subsequent boots will differ even if no configuration is touched by the user.

Accuracy

Exact list of measurements depends on the combination of firmware components, their versions, installed hardware, TPM version, runtime settings and at least user actions. This is why this document can only enumerate things which typically appear in event logs and can't go much further.

Repeated entries

Sometimes the same thing is measured multiple times (usually to the same PCR, digest is the same if that thing is unchanged) or many similar things get measured in sequence. Keep this in mind when looking for something in the event log as it can sometimes appear more than once, including several times in a row.

Log entries changing values

Bootloaders or components of operating systems might update SecureBoot configuration automatically thus changing PCR values. Similarly, any kind of software update or even update of configuration can potentially change behavior and cause an unexpected PCR value. In such cases PCR values tend to stabilize after a reboot.

Conditional measurements

Some things are measured dynamically when they get used which in turn is controlled by some setting. This can result in a single configuration change affecting event log in multiple places, for example disabling a device can:

change value of a corresponding option which is measured
remove an entry with a measurement of device's OptionROM
remove some of the BootXXX variables and update BootOrder to reflect that

Another example of a conditional measurement is entering firmware setup or using boot menu. Doing that causes a measurement of EFI application that implements corresponding user interface.
